GMP Production of Oral Dissolving Film (ODF) Machines: Framework, Controls, and Verification

Author: Sihan Meng,Leyu Zhu

Abstract

Good Manufacturing Practice (GMP) for oral dissolving film (ODF) machines requires a holistic system that integrates quality risk management (QRM), validated equipment and processes, controlled environments, data integrity, and lifecycle documentation. This paper outlines a practical framework for GMP-compliant ODF machine production, covering facility and material flows, equipment qualification (IQ/OQ/PQ), process validation, environmental monitoring, and release controls. We define measurable indicators—thickness/coat weight, residual moisture/solvent, content uniformity, and dissolution/disintegration—and show how a V-model approach links user requirements to verified performance [1–7]. Illustrative figures detail clean flows, validation documentation, and environmental trend.

Introduction

ODF production transforms a casting solution into precise unit films via coating, multi-zone drying, finishing, and primary packaging. Under GMP, the machine and the process must be designed and verified to consistently meet predefined Critical Quality Attributes (CQAs): thickness/coat weight, content uniformity, residuals, and dissolution/disintegration [1–3]. International frameworks—ICH Q8/Q9/Q10, FDA/PIC/S guidance, and data integrity principles (ALCOA+)—provide the backbone for system design and validation [4–7]. Clean material/personnel flows, controlled utilities (HVAC, compressed air), and qualified equipment are essential to prevent contamination, mix-ups, and variability [2,5].

Methods

1) Quality-by-Design (QbD) and QRM

• Define CQAs (e.g., coat weight, thickness, residual solvent/moisture, potency/content uniformity, dissolution) based on patient/consumer risk [1,4].

• Identify CMAs/CPPs: polymer grade, solids %, pump flow, die gap, line speed, dryer zone set-points, web tension, RH [2,3].

• Use QRM tools (FMEA/HACCP) to set controls and acceptance criteria [5].

2) Facility & Flow Design

• Personnel/material segregation, airlocks, pass-through cabinets; zoning by cleanliness risk (Figure 1) [2].

• Utilities qualification: HVAC mapping, differential pressure cascades, compressed air quality, nitrogen specs, purified water quality [2,5].

3) Equipment Lifecycle and Validation (V-Model)

• URS → FS/DS → supplier builds; FAT/SAT; IQ/OQ/PQ with traceability matrix (Figure 2) [4,6].

• Calibration & maintenance plans covering sensors (temperature, RH, tension, thickness gauges), pumps, slot-die, load cells.

4) Process Validation

• Stage 1—Process Design: DoE to link CPPs→CQAs; define operating ranges and alarms [1,4].

• Stage 2—Performance Qualification (PV): At least three consecutive commercial-scale lots meeting specs; sampling plans for uniformity/dissolution/residuals [6].

• Stage 3—Continued Process Verification (CPV): SPC trending, periodic review, re-validation triggers [6].

5) Analytical Methods & Data Integrity

• Validated methods for assay, content uniformity, residual solvents/moisture, dissolution/disintegration; suitable system suitability and calibration [6].

• ALCOA+: Attributable, Legible, Contemporaneous, Original, Accurate (+ Complete, Consistent, Enduring, Available) applied to all GxP records [7].

Measures (Key Performance & Compliance Indicators)

• Product/CQAs:

• Thickness (µm) / coat weight (g/m²); residual moisture/solvent; content uniformity (% label claim, RSD); dissolution/disintegration (s).

• Process/CPPs:

• Pump flow (mL/min), die gap (µm), line speed (m/min), dryer zone temps (°C)/RH/airflow, web tension (N).

• Environment/Utilities:

• Particles (≥0.5 µm/m³), viable counts (cfu/plate), room RH/°C, pressure differentials; compressed air dew point/oil/particles; water TOC/conductivity (Figure 3) [2,5].

• Validation Status:

• IQ/OQ/PQ completion, change control, deviation/CAPA closeout, calibration status, logbook/data integrity compliance [6,7].

Results (Illustrative, Compliance-Focused)

• Flow & Zoning: Implemented segregated material/personnel paths and pressure cascades; observed reduced deviations related to mix-ups/traffic (Figure 1) [2].

• Validation Package: URS→FS/DS with risk traceability; FAT/SAT findings resolved before IQ/OQ; PV lots met CQAs within predefined ranges, establishing normal operating ranges (NOR) and proven acceptable ranges (PAR) (Figure 2) [4,6].

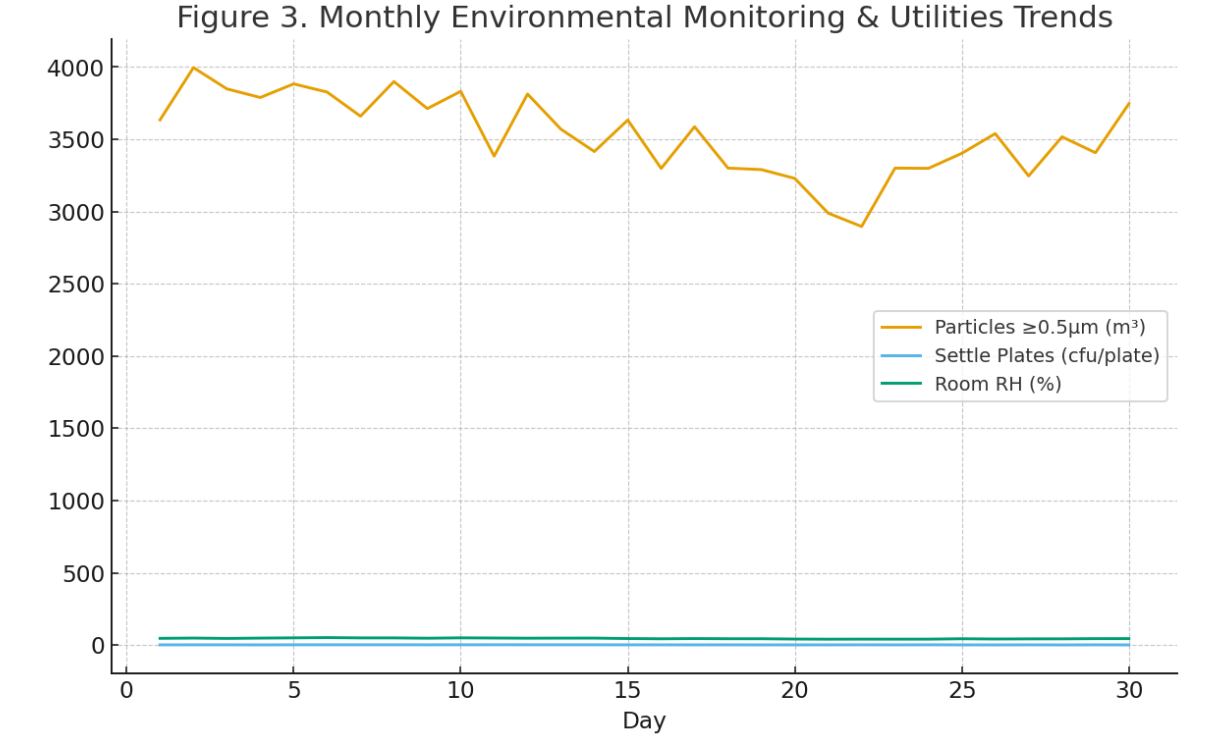

• Environment: Monthly particle/viable counts and RH remained within alert/action limits; utilities trended within specification (Figure 3) [2,5].

• Data Integrity: Batch records and electronic logs met ALCOA+ criteria; audit trails reviewed with no critical findings [7].

Discussion

Linking Design to Control

GMP compliance is achieved when design intent (URS) is demonstrably tied to verified performance (PQ) via a documented chain of specifications, tests, and reviews (Figure 2) [4,6]. The most frequent ODF risks—variable coat weight/thickness, drying over/under-shoot, and environmental drift—are mitigated by:

• Robust CPP control: closed-loop thickness/tension, staged dryer recipes, RH control [2,3].

• PAT & CPV: in-line thickness, at-/on-line NIR for solids/assay, SPC charts with CAPA triggers [1,6].

• Clean flows & utilities: zoning, pressure cascades, personnel gowning, and monitored utilities reduce contamination and blocking risk (Figure 1) [2,5].

• Data governance: ALCOA+ and validated informatics ensure trustworthy release decisions [7].

Practical Considerations

Suppliers should deliver DQ/IQ/OQ evidence and software validation (where applicable), while manufacturers finalize PQ/PV using product-specific CQAs. Change control must re-assess risk after equipment upgrades (e.g., slot-die lip change, sensor model change) and trigger re-qualification as needed [5,6].

Conclusion

A GMP production system for ODF machines requires synchronized control of people, plant, process, and paperwork. By applying QbD and QRM to define CQAs and CPPs, validating equipment and processes via the V-model, maintaining controlled environments and qualified utilities, and ensuring ALCOA+ data integrity, organizations can consistently release ODF products that meet specification and patient/consumer expectations [1–7].

References

[1] Preis M., et al. Orally disintegrating films—materials and manufacturing considerations. Int J Pharm. (review).
[2] PIC/S Guide to GMP for Medicinal Products—cleanroom classification, utilities, and material/personnel flow principles.
[3] Cilurzo F., et al. Fast dissolving films for oral drug delivery—process parameters and controls. Expert Opin Drug Deliv.
[4] ICH Q8(R2). Pharmaceutical Development—QbD framework.
[5] ICH Q9(R1). Quality Risk Management—FMEA/HACCP applications.
[6] ICH Q10 & FDA Process Validation Guidance—Stage 1/2/3 lifecycle; IQ/OQ/PQ and CPV.
[7] MHRA/GxP Data Integrity Guidance & Definitions—ALCOA+ principles.
